XU-001

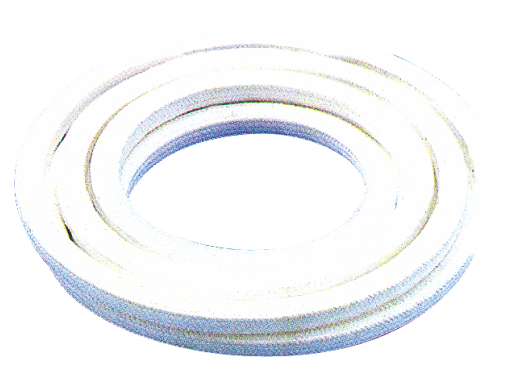

PTFE FIBER PACKING

Model :XU-001
Brand : TIANYI

PTFE FIBER PACKING

Material: It is a braided packing made of pure P.T.F.E.thin yarns fiber

which is impregnated piece by piece with P.T.F.E. dispersion .

Characteristics: Flexibility, almost complete chemical inertia, dimension stability, low friction coefficient to compression, and excellent resistence to compression, and excellent resistance to compression are qualities classifying this packing among the best ones available in the industrial field.

Application: It is suitable for all the chemical compounds(excepting cast alkaline metals and the gaseous fluorine), alternative and rotary motions shafts operating at low peripheral speed, rods, pistons vlave stems, expansion joints, etc.

PRESSURE2~20MPaStandard(mm)3.24.86.47.99.511.112.715.919.022.225.4
TEMPERATURE<280°CSize (inch)1/83/161/45/163/87/161/25/83/47/81
LINEAR SPEED2~4 M/skg/m30.060.130.220.320.460.630.831.291.872.483.25
PH0~14Braided methodSquare braidedLattice braided
