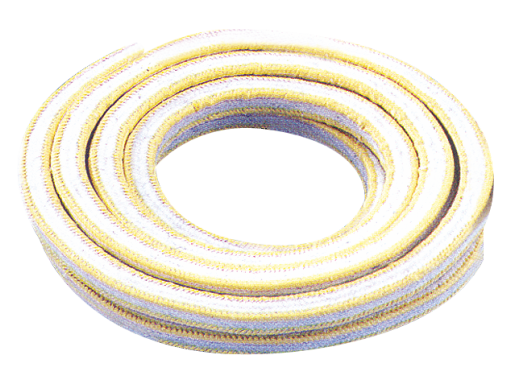

LUBRICATED PTFE & ARAMID FIBER PACKING
It is a braided packing made of P.T.F.E. yarns fiber and the reinforced corner yarns of aramid fiber.
This special structure enhances the lubricability of aramid fiber and reinforces the strength of the pure P.T.F.E. Packing.
This unique combination packing plays a very important role in the sealing of high pressure piston pump.
PRESSURE | 2 ~25MPa | Standard(mm) | 3.2 | 4.8 | 6.4 | 7.9 | 9.5 | 11.1 | 12.7 | 15.9 | 19.0 | 22.2 | 25.4 |
TEMPERATURE | <280°C | Size (inch) | 1/8 | 3/16 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 5/8 | 3/4 | 7/8 | 1 |
LINEAR SPEED | 2~12 M/s | kg/m3 | 0.22 | 0.33 | 0.45 | 0.63 | 0.83 | 1.39 | 1.87 | 2.48 | 3.24 | ||
PH | 2~13 | Braided method | Square braided | Lattice braided | |||||||||
