XU-045

SERIES OF COMPRESSED NON-ASBESTOS SHEET

Model :XU-045
Brand : TIANYI

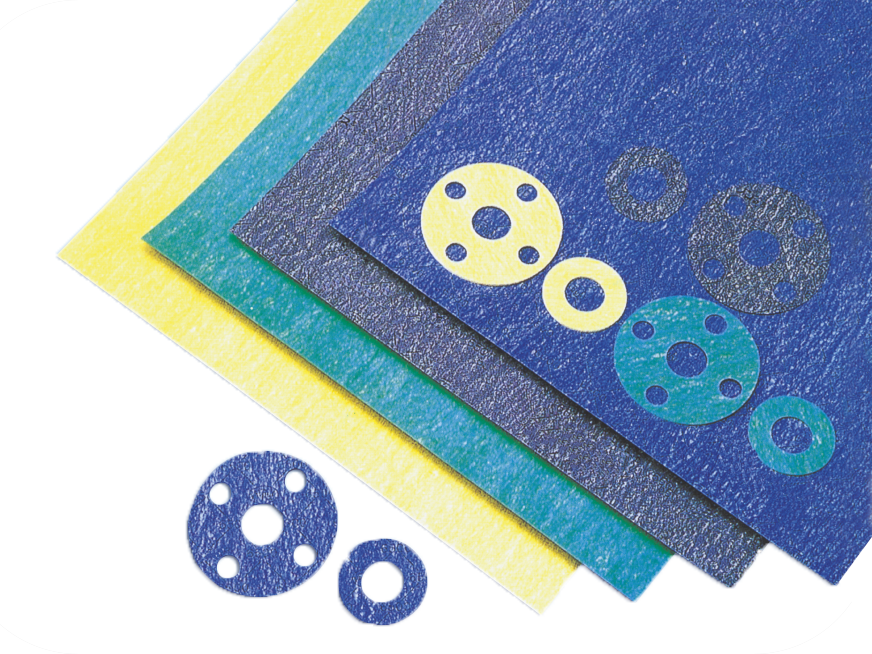

SERIES OF COMPRESSED NON-ASBESTOS SHEET

It can be stamped and sheared with dies or various tools and processed into products of various shapes.

Widely used in petroleum, chemical, pharmaceutical, shipping, automobile and other industries, is widely accepted and applied.

Asbestos-free board is rolled into board by using high-performance synthetic fibers, natural rubber, fillers, colorants and other materials under high temperature and pressure. It can completely replace the status of asbestos in essence.

Application:Suitable in the high temperature and high pressure. For water, saturated vapour, super vapour, gas, inert gases transmitted in the joints of facilities and pipelines.

COMPRESSED NON-ASBESTOS SHEET

DESCRIPTION

PRESSURE

TEMPERATURE

THICKNESS

PACKING

Compressed Non-asbestos Sheet With Low Pressure

15kgf/cm2 (max)

250cC(approx)

0.4mm 6.Omm

Wooden case

Compressed Non-asbestos Sheet With Medium Pressure

40kgf/cm2 (max)

350cC(approx)

0.4mm 6.0mm

Wooden case

Compressed Non-asbestos Sheet With High Pressure

60kgf/cm2(max)

450<fc(approx)

0.4mm 6.0mm

Wooden case
