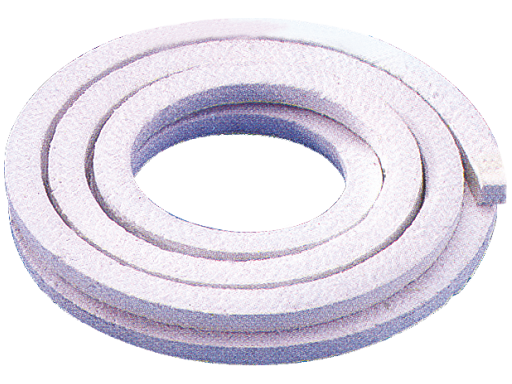

NON-ASBESTOS FIBER PACKING WITH IMPREGNATED PTFE
Mmaterial:They are braided packings made of at least 97% white asbestos yarns which is impregnated piece by Piece with P.T.F.E. dispersion.
Characteristics:They are flexible ,resilient.homogeneous and compact packing, and it can be utilized on stainless steel or chromes shafts in the presence of high perpheral speeds without etching them.
Application:They are suitable for alkalis, thinned inorganic acids, water, steam, organic acids, ketones, oils. alcohols, aliphatic gases, solutions of each kind. It can be utilized in paper mills, dyeing plant, foodstuff, pharmaceutical and oenologic industries.
PRESSURE | 2〜10MPa | Standard(mm) | 3.2 | 4.8 | 6.4 | 7.9 | 9.5 | 11.1 | 12.7 | 15.9 | 19.0 | 22.2 | 25.4 |
TEMPERATURE | <260°C | Size (inch) | 1/8 | 3/16 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 5/8 | 3/4 | 7/8 | 1 |
LINEAR SPEED | 8~10 M/s | kg/m3 | 0.12 | 0.21 | 0.31 | 0.45 | 0.60 | 0.78 | 1.23 | 1.75 | 2.35 | 3.00 |
